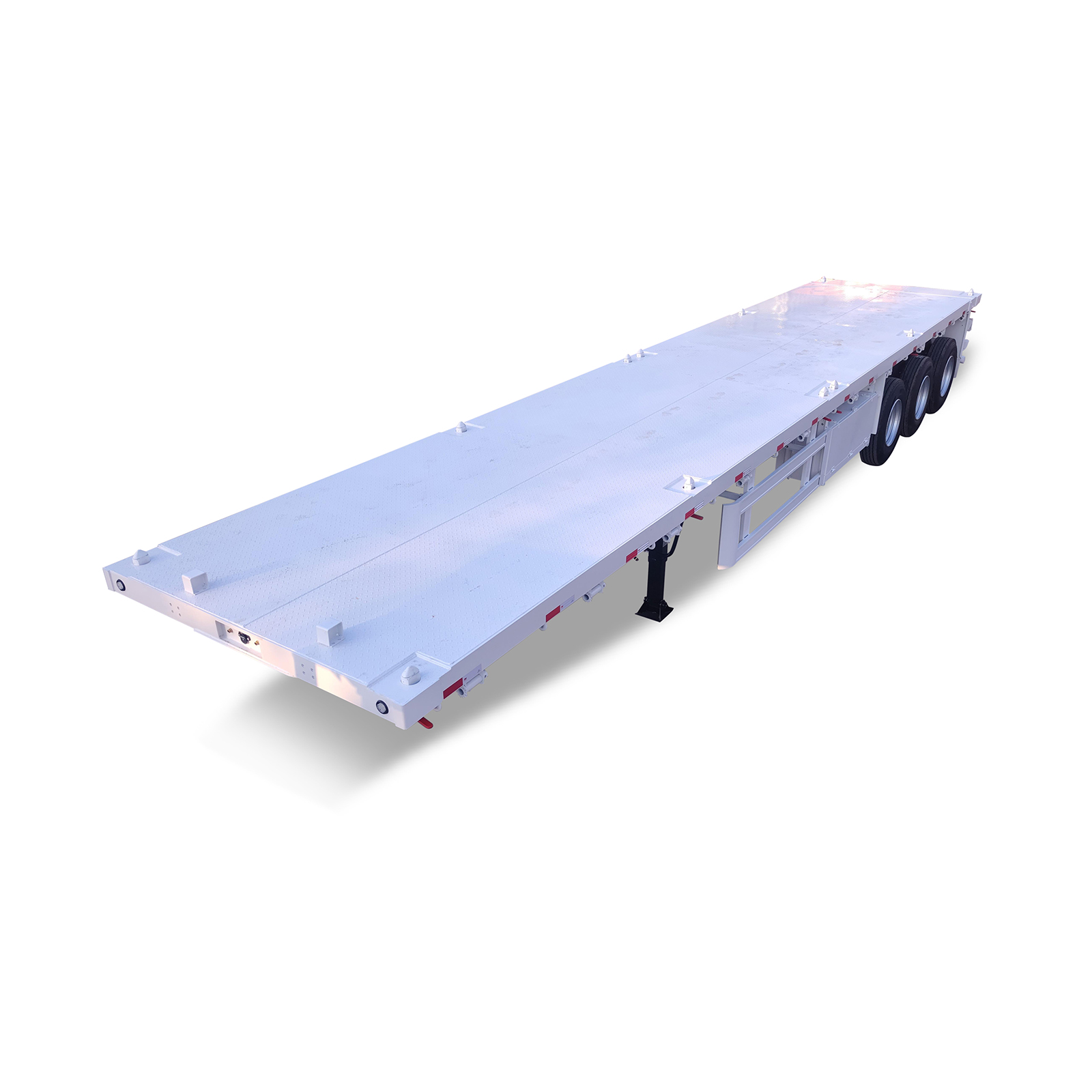

★HOTYE 3 axles 40ft Flatbed trailer★
Advantages of 3 axles Flatbed trailer:
The 3 axles 40ft Flatbed trailer is a semi-trailer specially used for transporting 40-foot containers. It is usually made of high-strength steel and has a high load-bearing capacity and a long service life.
It is mainly used for container transportation, especially suitable for ports and long-distance transportation. Its stable design and durable materials make it widely used in the logistics industry and can meet various transportation needs.
| Chassis | |
| Weight (KG): | Tare Weight(6800kg)/Load Weight(50000kg) |
| Dimensions : | (LxWxH) Overall Dimensions 12500x2500x1550 mm |
| Main Beam Material: | Q355B steel |
| Main Beam Height: | 500mm |
| Upper Plate: | 14mm |
| Lower Plate: | 16mm |
| Web Plate: | 8 mm |
| Platform: | 3mm |
| Running Gear | |
| Axle: | 3*13Ton axle |
| Suspension: | Leaf spring suspension |
| Tyre: | 12R22.5 tire |
| Kin Pin: | Bolt 2.0inch |
| Landing Gear: | 28Ton |
Brake System | |
| Brake Chamber: | Six double chambers |
| Electrical System | |
| Lamps: | A full set of LED lights |
| Voltage: | 24V |
| Accessories | |
| Tool Box: | One |
| Spare Wheel Carrier: | One |
| Twist Lock: | 12 pcs |
| Color: | Green,white,yellow etc |
| Painting: | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
